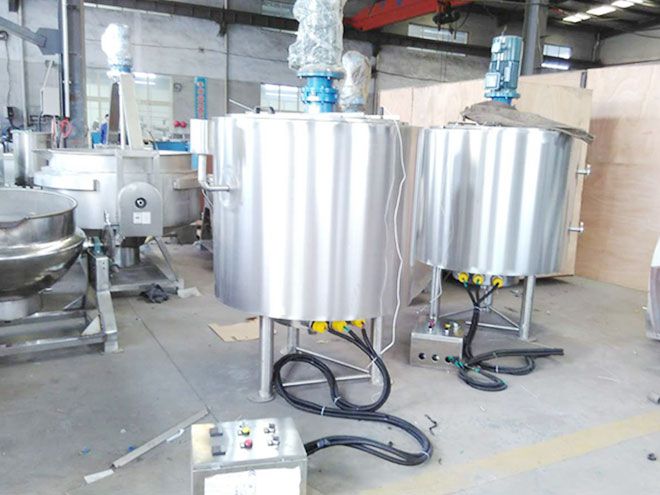

Vertical Cooking Pot

The features of fixed vertical mixing cooking pot include large heating area, ‌ fast heating speed, ‌ uniform heating, ‌ convenient operation, ‌ simple and easy to understand design, ‌ improve product quality, ‌shorten working time, ‌ improve working conditions. ‌ This equipment is especially suitable for liquid and non-sticky materials, ‌ discharge from the bottom, ‌ is very convenient.

Inquire Now

Advantage

The features of cooking kettle equipment mainly include energy saving, ‌ rapid heating, ‌ uniform mixing, ‌ automatic temperature control, ‌ multi-function and structural sealing. ‌‌

Fast heating: ‌ Generates high temperature quickly with the help of electromagnetic induction, ‌ combined with the efficient fluid convection of planetary stirring, ‌ can heat the cooking kettle to the working temperature in a short time, ‌ greatly shorten the cooking time. ‌

Uniform mixing: ‌ Scrape the bottom and stir not to paste the bottom.

Automatic temperature control: ‌ With accurate electronic temperature sensing and control system, ‌ can automatically control the temperature change of the cooking kettle according to the preset temperature curve, ‌ to achieve the best cooking effect. ‌

Structural seal: ‌ Adopts high sealing structure, ‌ pot moisture and nutrition can not leak out, ‌ more healthy and environmental protection. ‌ The special surface treatment is also non-viscous and corrosion-resistant.

Parameters and Specification

Cubage (L)	Diameter (mm)	Power (KW)	RevolutionSpeed (r/min)	Rotation speed (r/min)	Mixing mode	Turning mode	Heating mode
100L	Φ700	0.75+1.5	6.7-33	14-69.3	scraping bottom	Manual	Steam/gas/electric
200L	Φ800	0.75+1.5	6.7-33	14-69.3	scraping bottom	Manual	Steam/gas/electric
300L	Φ900	0.75+1.5	6.7-33	14-69.3	scraping bottom	Manual	Steam/gas/electric
400L	Φ1000	0.75+2.2	6.7-33	14-69.3	scraping bottom	Manual	Steam/gas/electric
500L	Φ1100	0.75+2.2	6.7-33	14-69.3	scraping bottom	Manual	Steam/gas/electric
600L	Φ1200	0.75+2.2	6.7-33	14-69.3	scraping bottom	Manual	Steam/gas/electric
1000L	Φ1400	0.75+3	6.7-33	14-69.3	scraping bottom	Manual	Steam/gas/electric

How to use the vertical cooking pot?

The steps for using a vertical cooking pot include cleaning, ‌ inspection, ‌ placing the materials, ‌ setting up the heating source, ‌ starting the stir, ‌ monitoring the process, and exception handling. ‌

Cleaning: ‌ Before and after use, ‌ should be cleaned inside and outside the pot, ‌ especially stir the leaves and the bottom of the pot, ‌ to ensure food safety and hygiene. ‌Before commencing operation, ‌ shall inspect all parts of the equipment, ‌ including heating element, ‌ mixing system, ‌ control panel and safety device, ‌ to ensure that they are in good condition and not damaged. ‌

To place: ‌ As needed, place the ingredients into the pot, ‌ taking care not to exceed the maximum capacity of the cooking kettle, ‌ to avoid uneven mixing or overflow. ‌

Set heating source: ‌ For gas type cooking kettle, ‌ need to open the pressure reducing valve and air intake interface, ‌ light the flame and adjust the damper and air valve to the required flame size; ‌ For an electric cooking kettle, plug in ‌ and set the heating temperature; ‌ Steam heated cooking kettle needs to connect the steam source and adjust the steam flow. ‌

Start mixing: ‌ Turn on the mixing switch, ‌ start mixing. ‌ Some models may allow adjustment of the mixing speed. ‌

Monitoring process: ‌ In the process of processing, ‌ regularly check the status of the material, ‌ timely adjust the firepower or mixing speed. ‌

Abnormal handling: ‌ If the stirring does not work or abnormal response, ‌ should be shut down immediately for inspection, ‌ and according to the steps in the operation instructions for troubleshooting, ‌ including the inspection of travel switch, ‌ motor, ‌ distribution box, ‌ frequency converter and circuit board. ‌ If any abnormal sound or smell is found, ‌ should stop the machine immediately and disconnect the power or air supply. ‌ wait for professional inspection and maintenance. ‌

Discharge: Discharge from the bottom, design with the outlet and the valve.

In addition, ‌ after work every day, ‌ should be the bottom of the cooking kettle clean accumulated material, ‌ and clean the inside of the cooking kettle body. ‌ During the operation of the equipment, ‌ should avoid putting hands into the kettle, ‌ to prevent accidents. ‌ ‌ Disconnect the device from the power supply prior to any maintenance or cleaning.

Components

Packing:

LCL shipping: Packing in export plywood wooden case.

FCL shipping: Can choose not be packed in wooden cases(save your cost), directly wrapped film packaging into the container reinforcement.

Certificate

Cases

The vertical cooking pot has been exported to many different countries, North America including the United States, Canada, Europe such as: Greece, Latvia, Russia and so on. Southeast Asia: Thailand, Vietnam, Indonesia, Malaysia, etc. Central Asian regions such as Uzbekistan, Kyrgyzstan, Pakistan etc.

Customer Review

Mushroom substrate Steam sterilizer Retort autoclave machine

l had a great experience with this company.Product was manufactured in a timely manner.They helped me customize a few things.Insulation of the product is also pretty good. Autoclave's wall thickness was also inspected by a local inspectioncompany and everything was as agreed.l am happy with this purchase and l hope allfuture buyers will have as good of an experience as l have had.

Gas Heated Jacketed Kettle For Making Sauce / Soup

Heavy duty equipment and Angel is great to work with, one of the few suppliers to provide a owners operational manual before the sale, thank you Angel.

Customized High Pressure Autoclave For Mushroom Cultivation

Great product, always timely manner response to any questions or concerns we had, shipment came in time despite all the pandemic regulations. We bought a big autoclave and a boiler for it, all looking great and quality according to specs, reasonable prices also. Thank you!

Industrial Electric Cooking Pot With Mixer

The customer service is excellent and very diligent. My best experience ever!

Shitake Mushroom Spawn Retort Sterilizer Machine

Solid product and excellent customer service. Angel Fan was very professional and help me customizing the autoclave and steam generator according to my requirements. I would buy again, highly recommended.

SEMI-AUTOMATIC - DOUBLE DOOR - MUSHROOM AUTOCLAVE : RT-1200*4000mm (INCLUDE TROLLEY）

Hello my name is Andrea Galifi I bought a mushroom autoclave from Zhucheng Ritonf Machinery. from the first contact with Angel Fan I was assisted in all my needs, in addition to having demonstrated excellent ability of seller Angel has proven to be professional and a very good person she is an excellent image for this company! excellent work in after sales support in helping me start up my autoclave, strongly hope to continue a partnership.

After Sales Service

Service & Installation

Consultation service before, during, and after sales;

Project planning and design services;

Test the machine as far as possible in the existing conditions of the workshop until everything is functional;

Training of equipment maintenance and operating personally;

We supply installation drawing and instruction.

Warranty period: Main body one year, lifetime maintenance.

Easy damaged parts (gasket\plastic parts\rubber parts) free in 1 years, we supply the new one if there is quality problem caused fittings broken, freight is collect.

Installation and debugging:

Method (1): We will debug it well before shipping and take videos, supply remote assistant to install and debug when you do this job.

Method (2): If the buyer needs the supplier to send engineers to the site for installation and commissioning, extra charge.
