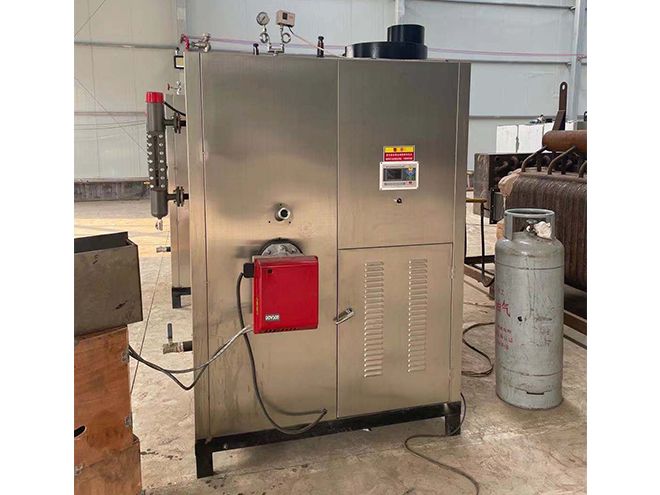

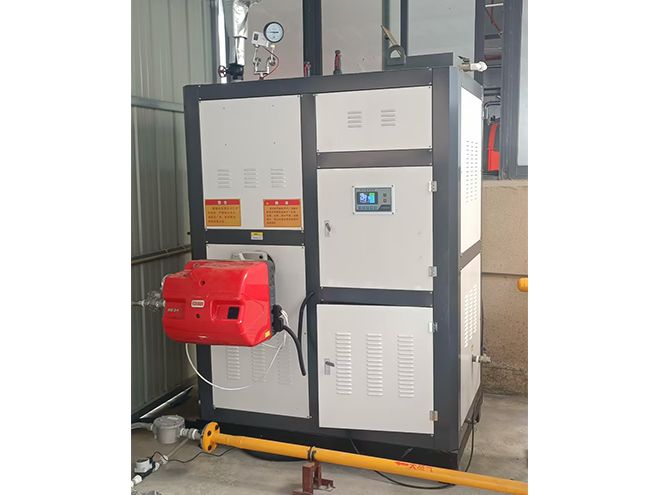

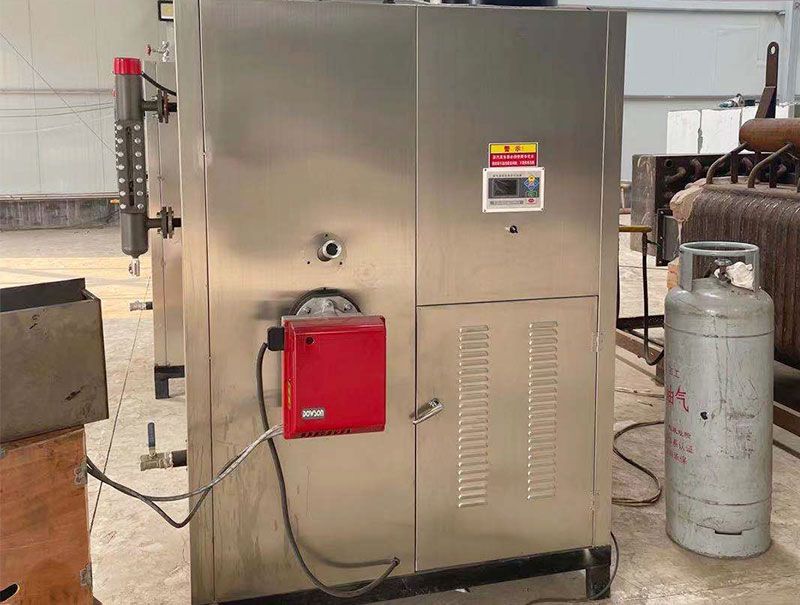

Gas/Diesel Steam Generator
Gas steam generators and oil steam generators are mechanical devices that use natural gas or oil to heat water into hot water or steam. Do not need to apply for approval procedures, do not need annual inspection, can be installed by itself, can choose liquefied gas, natural gas or light diesel as fuel, using three return combustion mode, low fuel consumption, thermal efficiency can reach more than 98%, the equipment adopts automatic control system and related safety devices, automatic chain control, safe and reliable, fast steam output, steam pressure up to 0.7Mpa, It can meet the vast majority of industries that use steam such as food processing, biochemistry, washing and ironing.
The gas steam generator mainly uses natural gas as fuel, is suitable for large canteen-houses, enterprises and institutions, fast food restaurants, hotel kitchens and other places that need cooking equipment. The working principle is that the heat is released through the burner, heat is absorbed by the water wall through radiation heat transfer, makes the water boil and vaporize, produces a lot of steam. gas steam generator has the characteristics of high energy efficiency, simple operation, safe and reliable, good environmental performance, is widely used in industrial production, household heating, food processing and other fields.
Advantage
The characteristics of gas/oil steam generator equipment mainly include high efficiency, environmental protection, energy saving, fast steam generation, easy operation, safe and reliable.
High efficiency and environmental protection: Gas/oil steam generator uses fuel oil or gas as the main energy, combustion speed is fast, combustion is full, there is no furnace coking phenomenon. This efficient combustion method significantly improves thermal efficiency and reduces operating costs. At the same time, because the waste gas produced in the process of fuel and gas combustion is relatively less, and the content of harmful substances in the flue gas is low, therefore meets the strict environmental protection standards.
Energy saving: Gas/oil steam generator uses advanced energy saving technology.
Fast steam generation: After ignition, gas/oil steam generator can quickly produce strong steam in a short time, to meet various steam needs. This fast response characteristic makes it have a wide range of application prospects in food processing and other fields.

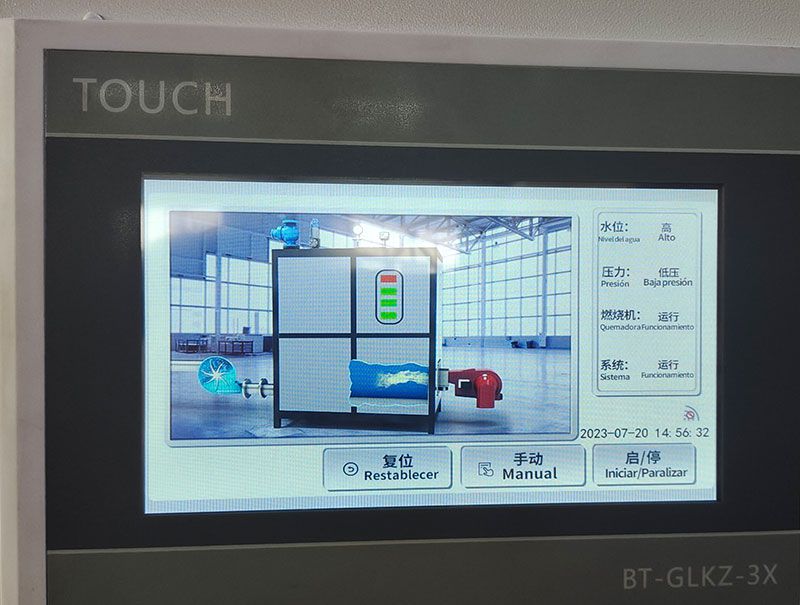

Easy to operate and safe and reliable: Gas/oil steam generator with automatic operating system, simplify the operation process, reduce labor costs. At the same time, equipment has high and low water level automatic protection function, multilevel interlock protection and other safety measures, to ensure the stable operation of equipment and personnel safety. In addition, adopts mechanical and electrical integration design, is compact in structure, occupies a small area, is convenient for transportation and installation.
No inspection, no certificate, simple installation: Gas/oil steam generator eliminates the tedious process of inspection and certification, can be put into use after installation and debugging, is safe and convenient operation, has high stability.
To sum up, gas/oil steam generator plays an important role in modern industrial production and life because of its high efficiency, environmental protection, energy saving, rapid steam generation, easy operation, safe and reliable characteristics.
Precautions for use
When using gas/oil steam generator, users should pay attention to the following precautions, to ensure the safety of the equipment, stable operation and extend the service life:
1.Safe operation: Ensure that the leakage circuit breaker is installed before entering the line, shell should be firmly grounded, to ensure the safety of users. Do not start the pump in the absence of water , because the pump needs heat dissipation, in the absence of water will burn the motor. It is prohibited to perform maintenance under steam pressure or high temperature. When performing maintenance or troubleshooting, must be cut off from the power supply, after pressure relief and cooling down, to avoid accident.
2.Water quality requirements: Use water softener to treat bad water sources (, such as deep well water, river water) . steam generator water should be non-corrosive, free of impurities clean soft water to avoid equipment damage and affect its normal operation.
3.Routine maintenance and inspection: Before starting or after a few days of shutdown, remove the pump fan with a screwdriver, make sure the air in the pump has been used up. The water stored in the steam tank should be drained after work every day, and cut off the main power supply, unscrew the exhaust steam valve, open the blowdown valve. Manually move the protective valve several times every two months, to prevent rust and stuck. Clean and maintain the equipment regularly.
4.Operation specifications: When using the steam generator, special person should be designated to operate, familiar with the specifications in the instructions, and use according to the operation specifications of the machine. Check whether the power supply is normal and whether the water is added to the water tank before starting each time. every time the machine is shut down after use, need to discharge the water and steam in the inner tank, and then turn off the main power supply, to prevent the steam in the machine condenses into water and produces fake gas. pay attention to sewage work, it is best to discharge twice a day, can be discharged with pressure, can well prevent the blockage of the pipeline.
5.Pressure control: In the process of using the equipment must be responsible for, at any time pay attention to the steam pressure in the heating cylinder, shall not exceed the maximum allowable pressure. pressure gauge, safety valve and pressure controller and other testing instruments should be handed over to professional units once a year for verification.
6.Other precautions: Do not adjust the pressure controller at will. Do not spray water and steam on electrical components. When the three-phase power supply is used, shall be connected to the neutral line with the line marked with "N", and marked with "live line" shall be connected to the three-phase live line A, B, and C of the power supply respectively.
Following the above precautions, can ensure the safe, stable operation of the gas steam generator, at the same time reduce the occurrence of faults.
Parameters and Specification
| Model | 100kg | 200kg | 300kg | 600kg | |
| Evaporation capacity | 100kg/h | 200kg/h | 300kg/h | 600kg/h | |
| Rated working pressure | 0.7MPA | ||||
| fuel | Diesel, LPG, natural gas | ||||
| boiler thermal efficiency | 90% | ||||
| Fuel consumption/h | diesel | 6kg | 14 kg | 19 kg | 38 kg |
| npg | 8m3 | 16 m3 | 23 m3 | 46 m3 | |
| lpg | 6 kg | 12 kg | 18 kg | 35 kg | |
| Water inlet dia. | DN15 | DN15 | DN20 | DN40 | |
| Drainage dia. | DN40 | DN40 | DN40 | DN40 | |
| Steam outlet dia. | DN25 | DN25 | DN25 | DN25 | |
| Safety valve dia. | DN20 | DN20 | DN25 | DN25 | |
| Chimney diameter | Φ133 | Φ159 | Φ219 | Φ219 | |
| Control system model | Exclusive use | ||||
| Adapter power | 220V/50HZ/single phase or customized | ||||
| Oversize(L*W*H) Approximate | 1800*900*1700mm | 2100*950*1800mm | 2100*950*1950mm | 2100*1900*2000mm | |
| Weight | 460kg | 760kg | 110kg | 2100kg | |

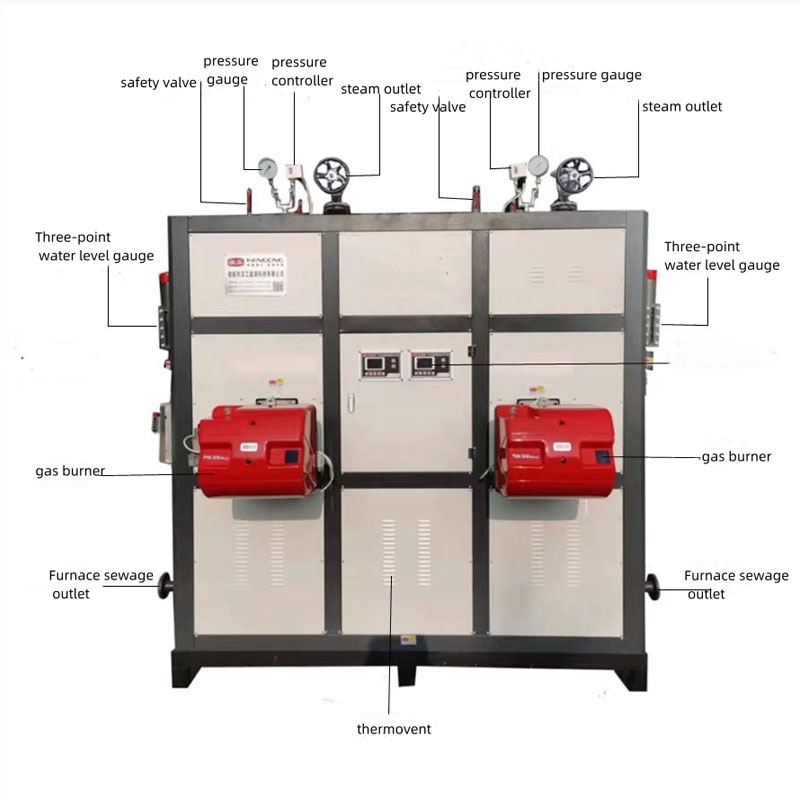

Components
Packing:
LCL shipping: Packing in export plywood wooden case
FCL shipping: can choose not be packed in wooden cases(save your cost), directly wrapped film packaging into the container reinforcement.

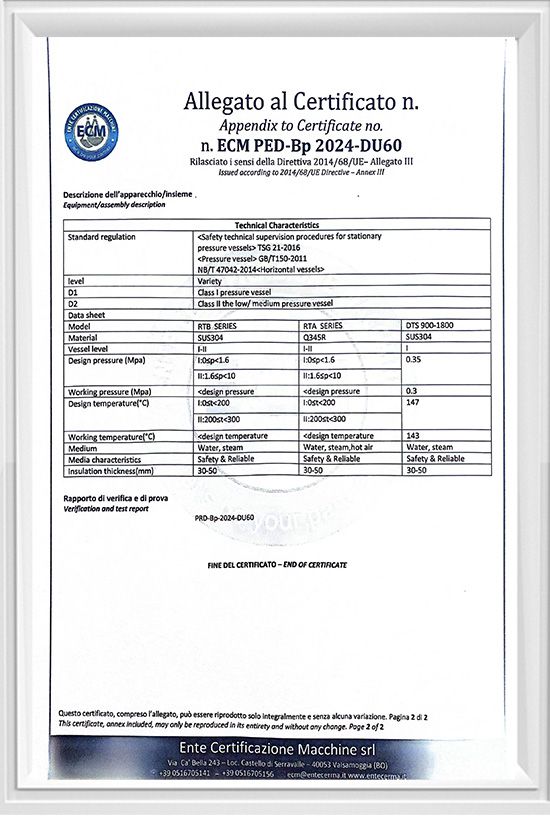

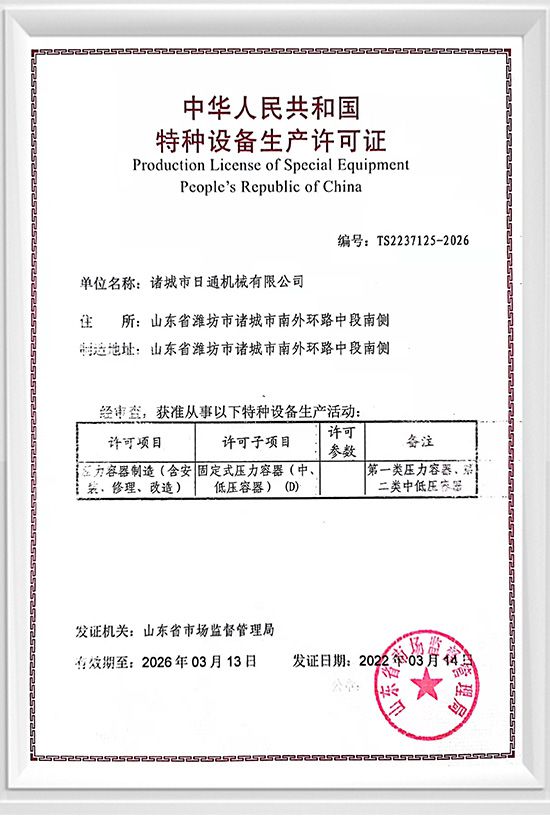

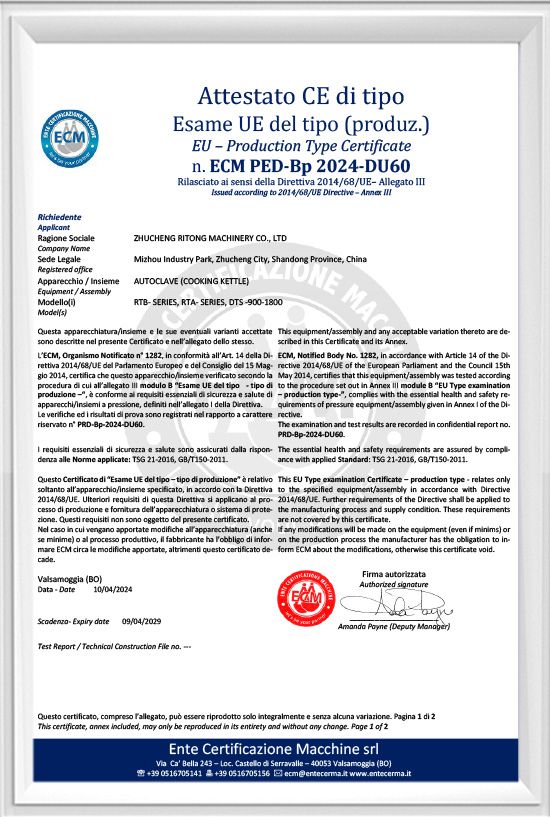

Certificate

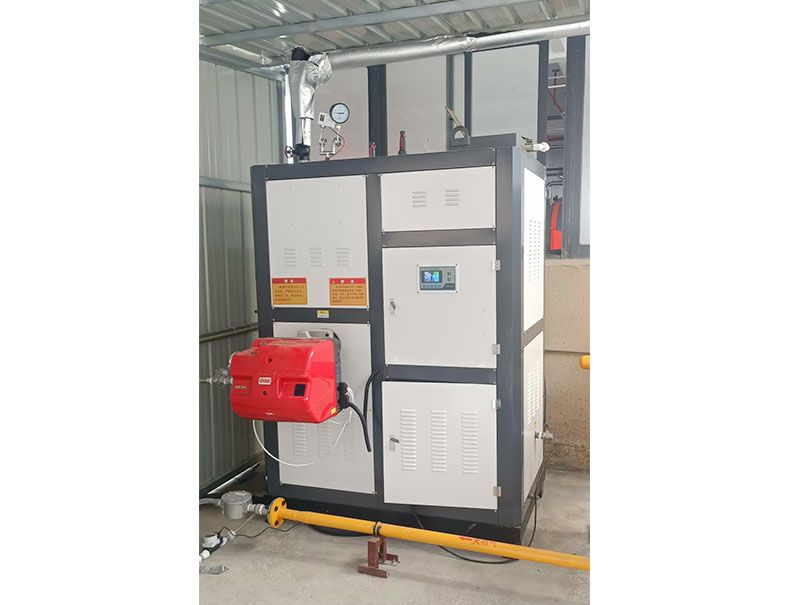

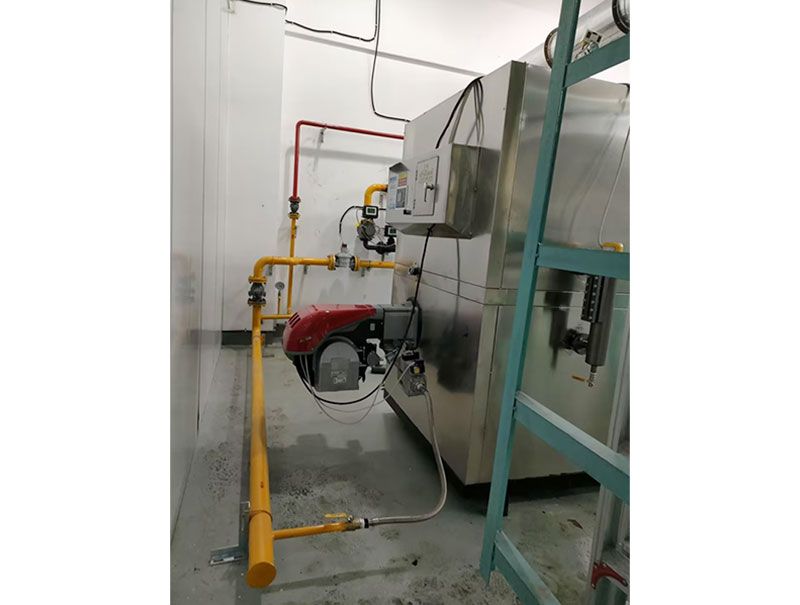

Cases
The gas/diesel steam generator has been exported to many different countries, North America including the United States, Canada, South America including Chile, Peru, Ecuador, etc., Europe such as: Britain, Italy, Greece, Latvia, Russia and so on. African regions such as: South Africa, Cameroon, Ghana, etc. Southeast Asia: Thailand, Vietnam, Myanmar, Indonesia, Malaysia, etc. Central Asian regions such as Uzbekistan, Kyrgyzstan, Pakistan etc.
Customer Review

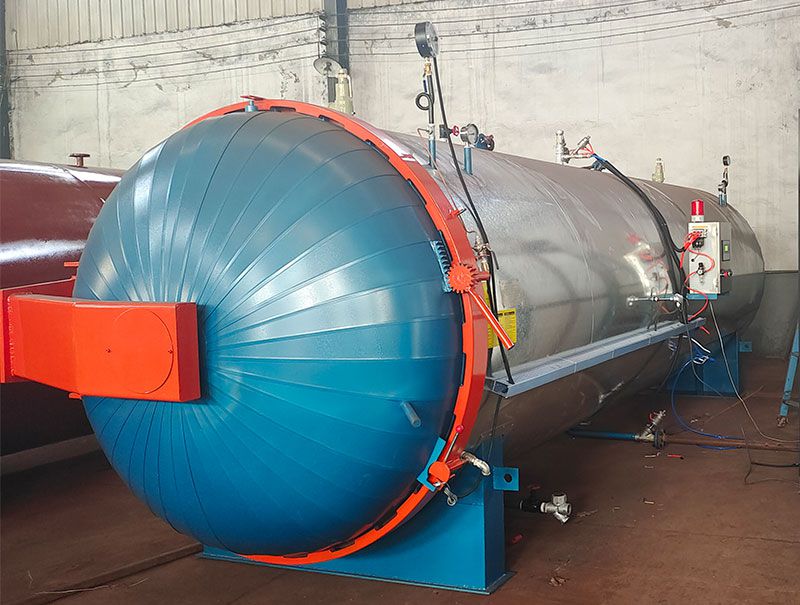

Mushroom substrate Steam sterilizer Retort autoclave machine
l had a great experience with this company.Product was manufactured in a timely manner.They helped me customize a few things.Insulation of the product is also pretty good. Autoclave's wall thickness was also inspected by a local inspectioncompany and everything was as agreed.l am happy with this purchase and l hope allfuture buyers will have as good of an experience as l have had.
Gas Heated Jacketed Kettle For Making Sauce / Soup
Heavy duty equipment and Angel is great to work with, one of the few suppliers to provide a owners operational manual before the sale, thank you Angel.
Customized High Pressure Autoclave For Mushroom Cultivation
Great product, always timely manner response to any questions or concerns we had, shipment came in time despite all the pandemic regulations. We bought a big autoclave and a boiler for it, all looking great and quality according to specs, reasonable prices also. Thank you!
Industrial Electric Cooking Pot With Mixer
The customer service is excellent and very diligent. My best experience ever!
Shitake Mushroom Spawn Retort Sterilizer Machine
Solid product and excellent customer service. Angel Fan was very professional and help me customizing the autoclave and steam generator according to my requirements. I would buy again, highly recommended.
SEMI-AUTOMATIC - DOUBLE DOOR - MUSHROOM AUTOCLAVE : RT-1200*4000mm (INCLUDE TROLLEY）
Hello my name is Andrea Galifi I bought a mushroom autoclave from Zhucheng Ritonf Machinery. from the first contact with Angel Fan I was assisted in all my needs, in addition to having demonstrated excellent ability of seller Angel has proven to be professional and a very good person she is an excellent image for this company! excellent work in after sales support in helping me start up my autoclave, strongly hope to continue a partnership
After Sales Service
Service & Installation:
Consultation service before, during, and after sales;
Project planning and design services;
Test the machine as far as possible in the existing conditions of the workshop until everything is functional;
Training of equipment maintenance and operating personally;
We supply installation drawing and instruction.
Warranty period: Main body one year, lifetime maintenance.
Easy damaged parts (gasket\plastic parts\rubber parts) free in 1 years, we supply the new one if there is quality problem caused fittings broken, freight is collect.
Installation and debugging:
Method(1): We will debug it well before shipping and take videos, supply remote assistant to install and debug when you do this job.
Method(2): If the buyer needs the supplier to send engineers to the site for installation and commissioning, extra charge.
Payment Term
T/T, L/C etc.
