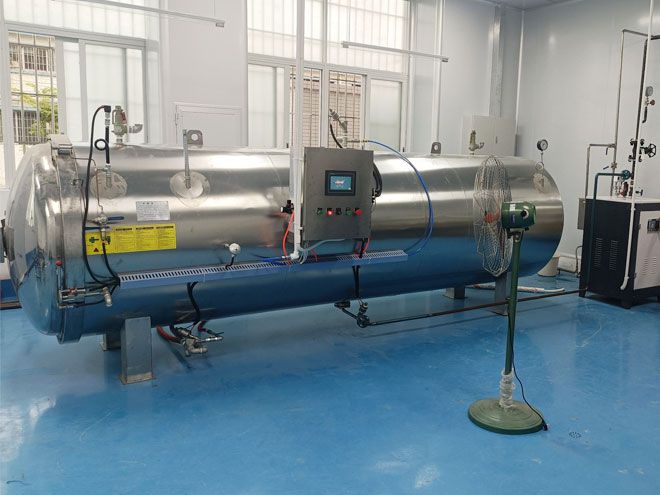

Autoclave Machine For Medical Waste

Medical waste sterilization pot is a kind of equipment that uses saturated pressure steam to disinfect and sterilize articles quickly and reliably, which is suitable for medical and health, scientific research, agriculture and other units. ‌

Equipment design standards and regulations

1. Quality assurance system and standards in accordance with the national standard GB150-2011 "Steel pressure vessel manufacturing standards" design, manufacturing, acceptance.

2. The equipment fully complies with GB150 standards, and is mainly designed and manufactured with the index of uniform heat distribution in the retort.

3. Under the condition that the process parameters are based on the correct position of the coldest point and the temperature setting, the equipment ensures the bacterial contamination rate of less than one part per million under the same pre-sterilization condition for all products.

Inquire Now

Advantage

The advantages of medical waste sterilization pot are mainly reflected in high efficiency, safety, environmental protection and automation. ‌

High efficiency: Medical waste sterilization pot adopts high temperature and high pressure steam sterilization technology, this technology can kill bacteria and viruses quickly and effectively, reaching 100% sterilization rate. Compared with the traditional low temperature sterilization technology, high temperature and high pressure steam sterilization can complete the sterilization process in a shorter time and improve the work efficiency .

Safety: The design of medical waste sterilization pot ensures that the operator has zero contact with medical waste, the whole process is in a fully closed container, avoiding the operator's direct contact with harmful substances, thus improving the safety of the working environment ‌.

Environmental protection: Through high temperature steam treatment, can effectively reduce the pollution of medical waste to the environment. This treatment does not produce harmful residues and meets the requirements of environmental protection.

Automation: Modern medical waste sterilization pot is equipped with advanced automatic control system, which can realize automatic input and exit of materials, reduce manual intervention, avoid the risk of cross infection that may be caused by manual operation, and improve work efficiency ‌.

The sterilization systems are manufactured completely from stainless steel and can withstand up to 10 BAR atmospheric pressure. Estimated life cycle : 10 Years if used 24 Hours/Day.

The control device is a full automatic PLC unit that controls the whole system including the shredder unit and steam generator (Optional).

All components are under our manufacturer warranty and are changed or repaired in the shortest time possible.

The system can be controlled and supervised online by the plant manager or our servicing team.

In summary, the medical waste sterilizer provides an effective solution for the treatment of medical waste through its characteristics of high efficiency, safety, environmental protection and automation.

Main Function

‌The main function of the medical waste sterilization pot is to use high temperature and high pressure steam sterilization, and the sterilization rate reaches 100%. ‌ This equipment is specially designed for the treatment of medical waste, which is thoroughly disinfected by high temperature and high pressure steam to prevent the spread of bacteria and cross infection. The design temperature of the medical waste sterilization pot is usually 180℃, and the design pressure is 0.85Mpa, which ensures the reliability and effectiveness of the sterilization effect. In addition, the medical waste sterilization pot is also equipped with a computer automatic control system and automatic input and exit material system, which realizes no manual secondary contact and further reduces the risk of bacterial transmission caused by human factors. This equipment is not only suitable for medical and health undertakings, but also includes scientific research, agriculture and other fields. It is an ideal equipment for disinfection and sterilization of medical instruments, dressings, glassware, solution media, etc. Due to the particularity of medical waste, the medical waste sterilization pot is usually made of corrosion-resistant materials, such as acid-resistant and alkali-resistant materials, to ensure normal operation under special conditions. The tank body generally adopts the double door structure, which is easy to realize the feeding, sterilization and discharging line operation ‌.‌

Precautions for use

When using a medical waste sterilizer, the following points need to be noted to ensure a safe and effective sterilization process:

‌ It is strictly prohibited to use tap water, distilled water should be used to avoid the heating ring due to accumulation of scale and rust.

‌Pay attention to the tank liquid level, can not be higher than the high water level, can not be lower than the low water level.

‌Sterilized articles should not be too large, too tight, should be neat and stable, generally should be less than 30cm×30cm×50cm.

‌bottle liquid sterilization, use gauze to bind the mouth of the bottle, and wrap the mouth of the bottle with newspaper; If there is a rubber plug, the needle should be inserted to exhaust, and the lid should be loosened.

‌When the pressure is not reduced to 0, do not open the sterilization pot.

‌‌Before each sterilization, the performance of the safety valve should be checked to prevent the explosion of excessive pressure.

‌Considering the sterilization pot and a variety of electrical appliances at the same time, should pay attention to the laboratory line load, to avoid overload load.

‌Regularly inspect and maintain the equipment. After the equipment reaches its useful life, it should apply to the school for scrapping in time.

Parameters and Specification

Autoclave machine for medical waste

The technical parameters of medical waste autoclave machine, mainly include sterilization rate, sterilization temperature, design pressure, automatic control system and so on.

‌Bactericidal rate: usually can reach 99.999% or more, to ensure the effective treatment of medical waste ‌.

‌Sterilization temperature: usually carried out at a high temperature of 134℃ to completely kill microorganisms ‌.

‌Design pressure: the design pressure is usually up to 0.85Mpa to meet the needs of high temperature and high pressure steam sterilization ‌.

‌Automatic control system: the use of computer automatic control system, including automatic in and out of the material system, to achieve no manual secondary contact, to prevent the spread of bacteria ‌.

In addition, the body material of the medical waste sterilization pot is generally made of corrosion-resistant materials, such as acid-resistant and alkali-resistant materials, to ensure normal operation under special conditions. In the design, the double door structure is usually used to realize the feeding, sterilization and discharging line operation.

These technical parameters together ensure that the medical waste in the sterilization process can achieve efficient and safe treatment effect.

Model-diameter(mm)（can customize）	RT-700	RT-800	RT-900	RT-1000	RT-1200
Cylinder length（mm）	1200	1500	1800	2200	3600
Material	SUS304/Q345R
Design temperature	147℃
Testing pressure	0.44Mpa
Design pressure	0.35 Mpa

MODEL	DIAMETER(m)	CYLINDER LENGTH(m)	TOTAL LENGTH(m)	PRODUCTIVITY	BOILER MODEL(ton)	CAPACITY(m³)
700	0.7	1.2	1.7	120-150kg	0.1	0.7
800	0.8	1.5	2.3	200-250kg	0.2	0.9
900	0.9	1.8	2.5	300-350kg	0.2	1.1
1000	1	2.2	3.0	500-550kg	0.3	1.8
1200	1.2	3	3.8	800-1000kg	0.5	4.0
1. TYPE: Electrical heating, steam generator(boiler). 2. MEDIUM: air, water, steam. 3. CONTROL SYSTEM: Manual, semi-automatic and fully automatic options. 4. Diameter, length, design pressure and temperature fabrication under customers requirements .

MODEL	DISPOSE
700（ELECTRIC&STEAM, 36kw）	WITH 3 TRAYS, 1 PALLET、1 TROLLEY
800（ELECTRIC&STEAM, 45kw）	WITH 6 TRAYS, 2 PALLETS、2 TROLLEIES
900（ELECTRIC&STEAM, 60-75kw）	WITH 8 TRAYS, 2 PALLETS、2 TROLLEIES
1000（ELECTRIC&STEAM, 90-120kw）	WITH 10 TRAYS, 2 PALLETS、2 TROLLEIES
1200（ELECTRIC&STEAM, 150-260kw）	WITH 15 TRAYS, 3 PALLETS、3 TROLLEIES
1500	WITH 20 TRAYS, 4 PALLETS、4 TROLLEIES
Note: 1. About the electric heating power(only select the electric heating ype): the above is the standard configuration, which can be customized according to the user's power grid capacity. 2. About the number of trays: the above is the standard configuration, and the number can be customized according to user products size.

How to use the Autoclave Machine For Medical Waste?

Medical waste collected in bins or plastic bags are in transferred into stainless steel autoclave carts.

The carts are pushed into the autoclave where a pre-vacuum process ensures that all air is removed from the waste. The autoclave is heated up with steam to 138° C and 3,8 bar atmospheric pressure.

Sterilization is done by keeping the waste for a given time under the above conditions. The process is repeated until 8 log 10 sterilization efficiency is reached.

The waste is vacuumed and dried then removed from the autoclave. All parameters can be programmed according to costumer needs. The system is extremely easy to operate, can be managed by one operator that has passed the 8 hour training program.

Components

Packing:

LCL shipping: Packing in export plywood wooden case

FCL shipping: Can choose not be packed in wooden cases(save your cost), directly wrapped film packaging into the container reinforcement.

Installation accessories: Thermometers, one set of liquidometer,1 door sealing gasket, pressure gauge, safety valve, PT100, and electric contact pressure gauge.

The autoclave machine for medical waste is composed of one cylinder, two sets of sealing head, two sets of flanges, sealing device, saddle device, bending arm device, safety chain 1, safety chain 2, computer automatic control cabinet device, insulation device, a set of trays/pallets/trolleys or can choose basket(depend on product package style), water pump and all circulation pipes and various valves and other parts.

The autoclave machine for medical waste for food sterilization main body is usually made of food-grade 304 stainless steel pressure vessel special national standard plate. You can also choose more advanced materials such as SS316 according to the customer.

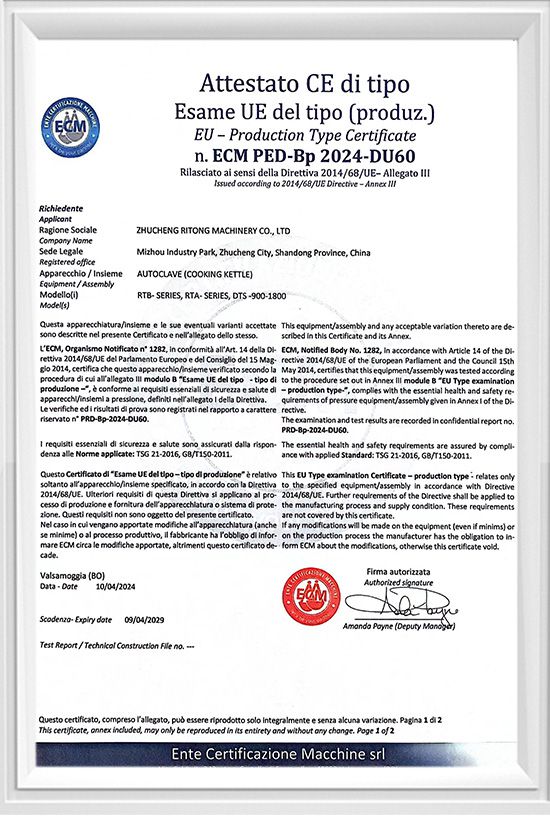

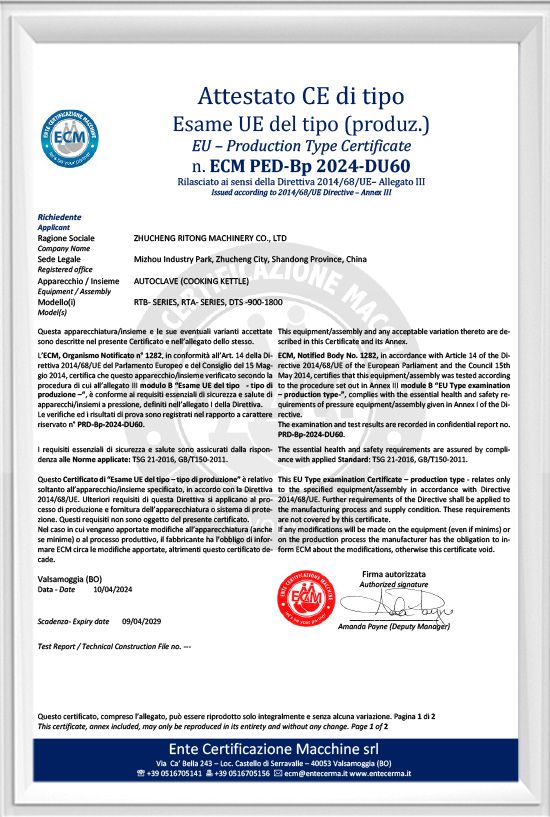

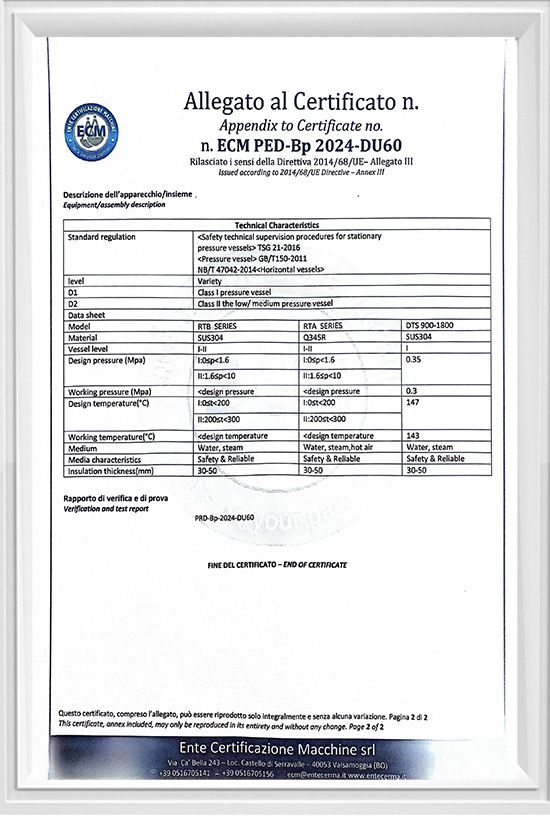

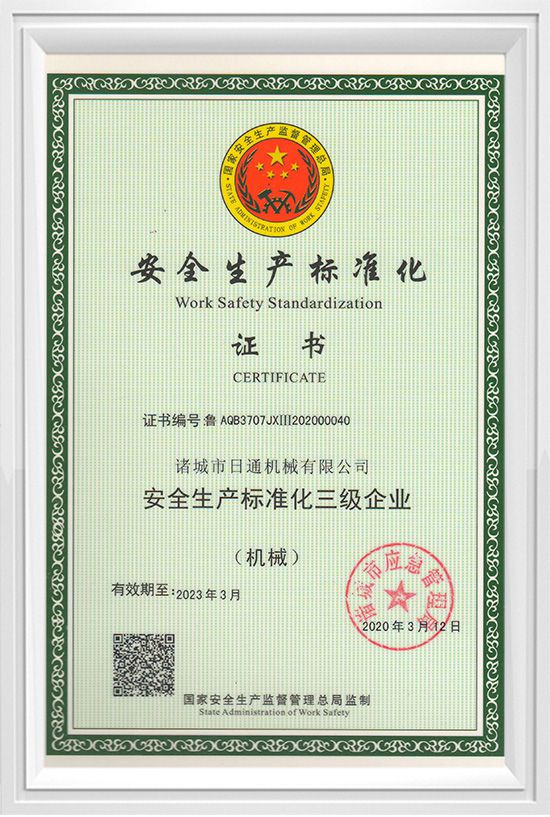

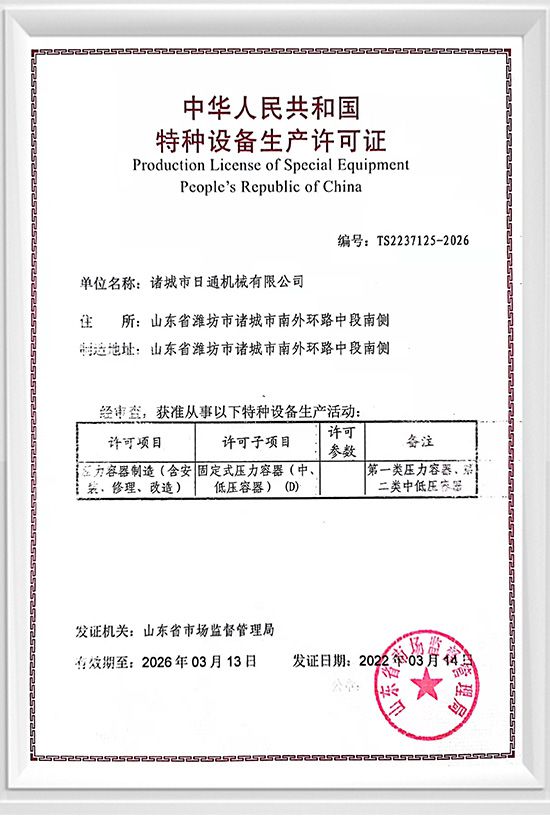

Certificate

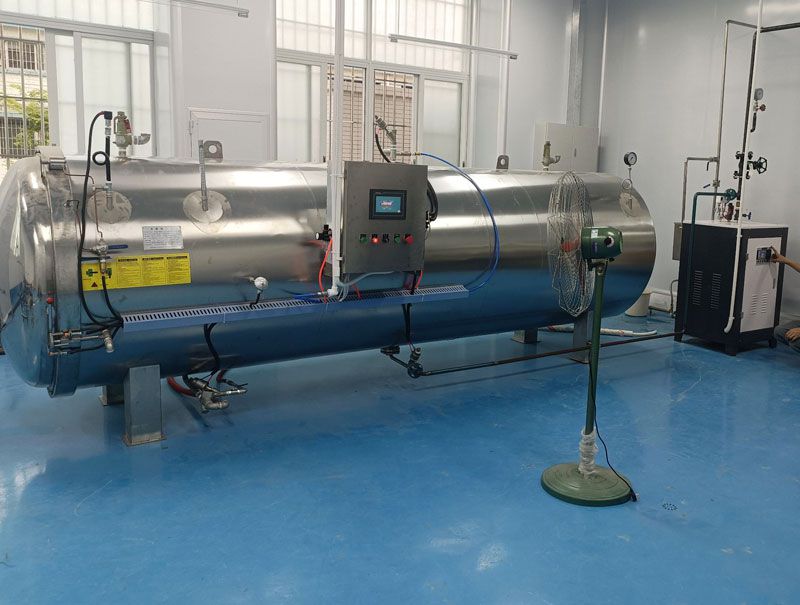

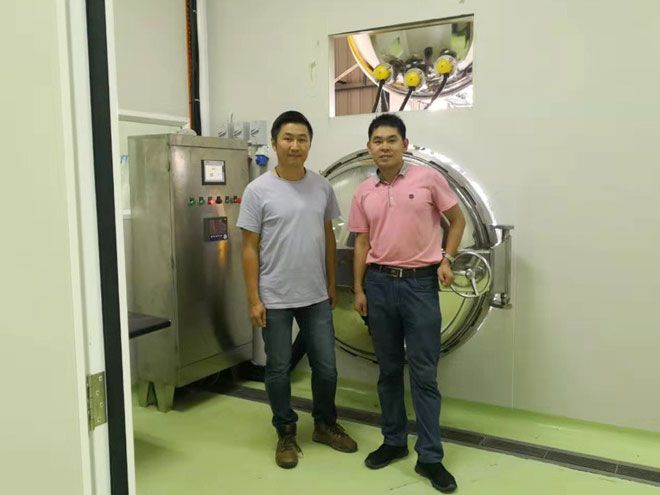

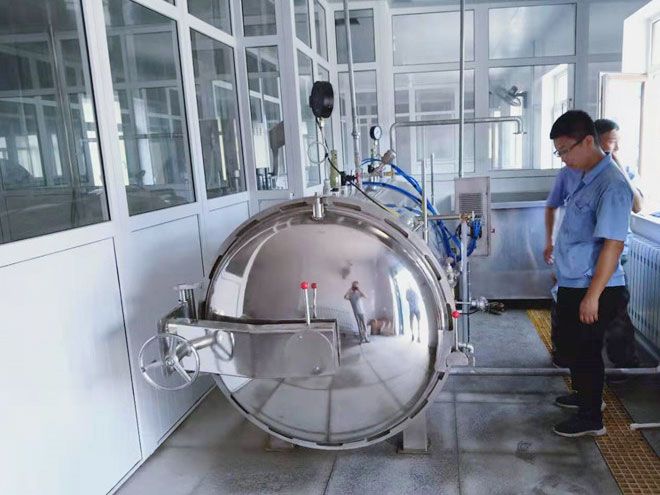

Cases

The autoclave machine for medical waste has been exported to many different countries, North America including the United States, Canada, South America including Chile, Peru, Ecuador, etc., Europe such as: Britain, Italy, Greece, Latvia, Russia and so on. African regions such as: South Africa, Cameroon, Ghana, etc. Southeast Asia: Thailand, Vietnam, Myanmar, Indonesia, Malaysia, etc. Central Asian regions such as Uzbekistan, Kyrgyzstan, Pakistan etc.

Customer Review

Mushroom substrate Steam sterilizer Retort autoclave machine

l had a great experience with this company.Product was manufactured in a timely manner.They helped me customize a few things.Insulation of the product is also pretty good. Autoclave's wall thickness was also inspected by a local inspectioncompany and everything was as agreed.l am happy with this purchase and l hope allfuture buyers will have as good of an experience as l have had.

Gas Heated Jacketed Kettle For Making Sauce / Soup

Heavy duty equipment and Angel is great to work with, one of the few suppliers to provide a owners operational manual before the sale, thank you Angel.

Customized High Pressure Autoclave For Mushroom Cultivation

Great product, always timely manner response to any questions or concerns we had, shipment came in time despite all the pandemic regulations. We bought a big autoclave and a boiler for it, all looking great and quality according to specs, reasonable prices also. Thank you!

Industrial Electric Cooking Pot With Mixer

The customer service is excellent and very diligent. My best experience ever!

Shitake Mushroom Spawn Retort Sterilizer Machine

Solid product and excellent customer service. Angel Fan was very professional and help me customizing the autoclave and steam generator according to my requirements. I would buy again, highly recommended.

SEMI-AUTOMATIC - DOUBLE DOOR - MUSHROOM AUTOCLAVE : RT-1200*4000mm (INCLUDE TROLLEY）

Hello my name is Andrea Galifi I bought a mushroom autoclave from Zhucheng Ritonf Machinery. from the first contact with Angel Fan I was assisted in all my needs, in addition to having demonstrated excellent ability of seller Angel has proven to be professional and a very good person she is an excellent image for this company! excellent work in after sales support in helping me start up my autoclave, strongly hope to continue a partnership.

After Sales Service

Service & Installation

Consultation service before, during, and after sales;

Project planning and design services;

Test the machine as far as possible in the existing conditions of the workshop until everything is functional;

Training of equipment maintenance and operating personally;

We supply installation drawing and instruction.

Warranty period: Main body one year, lifetime maintenance.

Easy damaged parts (gasket\plastic parts\rubber parts) free in 1 years, we supply the new one if there is quality problem caused fittings broken, freight is collect.

Installation and debugging:

Method (1): We will debug it well before shipping and take videos, supply remote assistant to install and debug when you do this job.

Method (2): If the buyer needs the supplier to send engineers to the site for installation and commissioning, extra charge.
