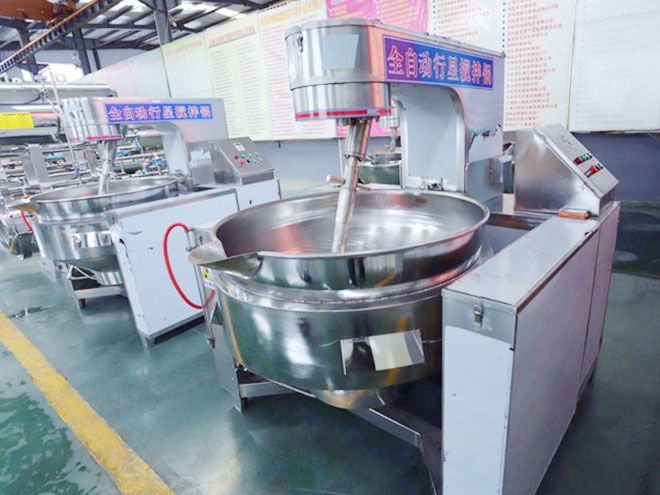

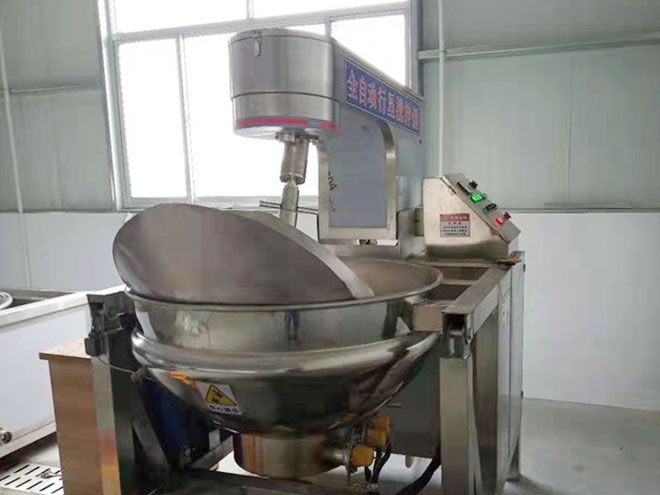

Fully Automatic Planetary Stirrer Cooking Kettle

Automatic planetary stirring cooking kettle is a kind of high performance food processing equipment, ‌ is widely used in catering, ‌ food processing, ‌ condiment, ‌ snack food, ‌ medicine and other fields.

Inquire Now Next Product

Advantage

The advantages of automatic planetary stirring cooking kettle are mainly reflected in high efficiency and uniform heating, ‌ intelligent control, ‌ mixing evenly, ‌ to maintain nutrition and flavor, ‌ labor saving, ‌ easy to clean and maintain, ‌ to improve safety and wide range of application.

The stirring device of the planetary stir cooking kettle can scrape the bottom and turn it over, which is more suitable for the thick materials, such as sauces and other products with similar characteristics. It won't burn the bottom of the kettle.

Main Function

The main functions of the automatic planetary stirring cooking kettle include uniform frying, ‌ scraping bottom frying and boiling. ‌

Uniform roasting: ‌ Is suitable for cooking in the canteen, ‌ porridge, ‌ can ensure that the material evenly heated, ‌ to achieve the ideal cooking effect. ‌

Scraping bottom frying: ‌ Is especially suitable for all kinds of sauces, ‌ base, ‌ filling and other high viscosity materials, ‌ can effectively scrape the residue of the bottom of the pan, ‌ to avoid material burning. ‌

Cooking: ‌ Is suitable for the boiling and boiling of jam, ‌ syrup and other materials, ‌ by precisely controlling temperature and time, ‌ to ensure the best boiling effect of materials.

Parameters and Specification

Cubage (L)	Diameter (mm)	Power (KW)	RevolutionSpeed (r/min)	Rotation speed (r/min)	Mixing mode	Turning mode	Heating mode
100L	Φ700	0.75+1.5	6.7-33	14-69.3	Planet/scraping bottom	Automatic/Hydraulic pressure	Steam/gas/electric
200L	Φ800	0.75+1.5	6.7-33	14-69.3	Planet/scraping bottom	Automatic/Hydraulic pressure	Steam/gas/electric
300L	Φ900	0.75+1.5	6.7-33	14-69.3	Planet/scraping bottom	Automatic/Hydraulic pressure	Steam/gas/electric
400L	Φ1000	0.75+2.2	6.7-33	14-69.3	Planet/scraping bottom	Automatic/Hydraulic pressure	Steam/gas/electric
500L	Φ1100	0.75+2.2	6.7-33	14-69.3	Planet/scraping bottom	Automatic/Hydraulic pressure	Steam/gas/electric
600L	Φ1200	0.75+2.2	6.7-33	14-69.3	Planet/scraping bottom	Automatic/Hydraulic pressure	Steam/gas/electric

Design feature: ‌

The cooking kettle body is made of stainless steel hemispherical design, ‌ to ensure large heating area and high thermal efficiency. ‌

Mixing method adopts special inclined transmission, ‌ planetary agitator is in full contact with the cooking kettle body, ‌ to achieve an integer transmission ratio of revolution and rotation, ‌ to ensure that there is no stirring dead Angle in the cooking kettle. ‌

Use advanced transmission and sealing structure ‌ to keep the drive part and the cooking kettle clean and hygienic. ‌

Adopt frequency conversion speed regulation power, ‌ stable operation, ‌ save manpower, ‌ reduce labor intensity. ‌

Heating form: ‌

Heating forms include steam, ‌ liquefied gas, ‌ natural gas, ‌ to meet different needs. ‌

Automation features: ‌

Fully automatic operation, ‌ including hydraulic lifting pan transfer, ‌ no disassembly mixer, ‌ easy to enter and exit raw materials. ‌

Stepless variable frequency governor can mix high viscosity products and heat evenly to improve heat, ‌ easy to operate, ‌ high efficiency, ‌ low energy consumption, ‌ long service life. ‌

Material & Hygiene: ‌

The contact part of the cooking kettle body and material is made of food-grade SUS304 stainless steel, ‌ in line with health requirements. ‌

All parts in contact with food are made of 0Cr18Ni9 stainless steel and polished, ‌ in line with the requirements of ‌ Food Hygiene Law of the People's Republic of China ‌. ‌

Application scope: ‌

Widely used in lotus seed paste, ‌ fruit paste, ‌ bean filling, ‌ jujube paste, ‌ paste, ‌ curry prepared food and daily chemical industry, ‌ pharmaceutical industry mixing. ‌

The fully automatic planetary stirring cooking kettle is designed to improve production efficiency, ‌ reduce labor costs, ‌ and ensure food safety and hygiene. ‌ is one of the indispensable equipment in modern food processing industry.

How to use the automatic planetary stir cooking kettle?

The steps for using a fully automatic planetary stir cooking kettle include cleaning, ‌ checking, ‌ placing materials, ‌ setting up a heating source, ‌ starting the stir and monitoring the process. ‌

Cleaning: ‌ Before using the automatic planetary stirring cooking kettle, ‌ needs to clean the inside and outside of the cooking kettle, ‌ especially the stirring blades and the bottom of the cooking kettle, ‌ to ensure food safety and hygiene. ‌

Check: ‌ Check all parts of the plant, ‌ including heating element, ‌ mixing system, ‌ control panel and safety device, ‌ make sure they are in good condition and not damaged. ‌

To place: ‌ As needed, place the ingredients into the cooking kettle, ‌ taking care not to exceed the maximum capacity of the cooking kettle, ‌ to avoid uneven mixing or overflow. ‌

Set the heating source: ‌ Turn on the corresponding heating source according to the type of cooking kettle (‌ such as gas or electric type) ‌. ‌ For a gas type cooking kettle, ‌ open the pressure reducing valve and air inlet, ‌ open the air valve counterclockwise, ‌ light the flame, ‌ adjust the damper and air valve to the required flame size. ‌ For an electric type cooking kettle, ‌ plug it in and ‌ set the heating temperature as needed. ‌ Steam heated cooking kettle needs to connect the steam source and adjust the steam flow. ‌

Start mixing: ‌ Turn on the mixing switch, ‌ start mixing. ‌ Some models may allow adjustment of the mixing speed. ‌

Monitoring process: ‌ In the process of processing, ‌ regularly check the status of the material, ‌ timely adjust the firepower or mixing speed. ‌

In addition, ‌ also need to pay attention to the following: ‌

Read and understand the operating instructions of the equipment carefully before operation, ‌ understand the specific operation details and safety specifications of the equipment. ‌

Wear appropriate protective equipment, such as ‌ chef's clothes, ‌ gloves, ‌ to prevent burns or splashes. ‌

Avoid heating the empty cooking kettle ‌ do not heat the empty cooking kettle for a long time without materials ‌ to avoid damage to the equipment. ‌

Set an easy-to-reach emergency stop button ‌ for immediate use in case of emergency. ‌

Clean and maintain equipment regularly, ‌ check and lubricate moving parts.

Components

Packing:

LCL shipping: Packing in export plywood wooden case.

FCL shipping: Can choose not be packed in wooden cases(save your cost), directly wrapped film packaging into the container reinforcement.

Certificate

Cases

The fully automatic planetary stir cooking kettle has been exported to many different countries, North America including the United States, Canada, Europe such as: Greece, Latvia, Russia and so on. Southeast Asia: Thailand, Vietnam, Indonesia, Malaysia, etc. Central Asian regions such as Uzbekistan, Kyrgyzstan, Pakistan etc.

Customer Review

Mushroom substrate Steam sterilizer Retort autoclave machine

l had a great experience with this company.Product was manufactured in a timely manner.They helped me customize a few things.Insulation of the product is also pretty good. Autoclave's wall thickness was also inspected by a local inspectioncompany and everything was as agreed.l am happy with this purchase and l hope allfuture buyers will have as good of an experience as l have had.

Gas Heated Jacketed Kettle For Making Sauce / Soup

Heavy duty equipment and Angel is great to work with, one of the few suppliers to provide a owners operational manual before the sale, thank you Angel.

Customized High Pressure Autoclave For Mushroom Cultivation

Great product, always timely manner response to any questions or concerns we had, shipment came in time despite all the pandemic regulations. We bought a big autoclave and a boiler for it, all looking great and quality according to specs, reasonable prices also. Thank you!

Industrial Electric Cooking Pot With Mixer

The customer service is excellent and very diligent. My best experience ever!

Shitake Mushroom Spawn Retort Sterilizer Machine

Solid product and excellent customer service. Angel Fan was very professional and help me customizing the autoclave and steam generator according to my requirements. I would buy again, highly recommended.

SEMI-AUTOMATIC - DOUBLE DOOR - MUSHROOM AUTOCLAVE : RT-1200*4000mm (INCLUDE TROLLEY）

Hello my name is Andrea Galifi I bought a mushroom autoclave from Zhucheng Ritonf Machinery. from the first contact with Angel Fan I was assisted in all my needs, in addition to having demonstrated excellent ability of seller Angel has proven to be professional and a very good person she is an excellent image for this company! excellent work in after sales support in helping me start up my autoclave, strongly hope to continue a partnership.

After Sales Service

Service & Installation

Consultation service before, during, and after sales;

Project planning and design services;

Test the machine as far as possible in the existing conditions of the workshop until everything is functional;

Training of equipment maintenance and operating personally;

We supply installation drawing and instruction.

Warranty period: Main body one year, lifetime maintenance.

Easy damaged parts (gasket\plastic parts\rubber parts) free in 1 years, we supply the new one if there is quality problem caused fittings broken, freight is collect.

Installation and debugging:

Method (1): We will debug it well before shipping and take videos, supply remote assistant to install and debug when you do this job.

Method (2): If the buyer needs the supplier to send engineers to the site for installation and commissioning, extra charge.

Payment Term

T/T, L/C etc.
