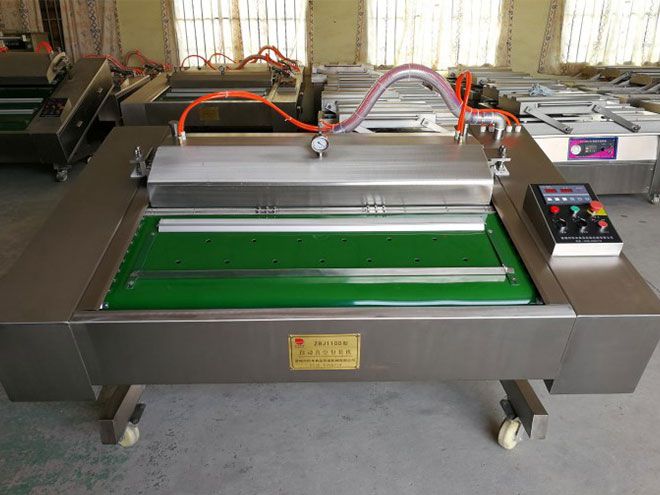

Rolling Packaging Machine

Rolling vacuum packaging machine is a kind of packaging equipment based on vacuum sealing technology. It is done by placing the items to be packaged in a plastic bag, and then placing the mouth of the bag into a vacuum packaging machine, and sealing the mouth of the bag during the process of extracting the air in the bag. In this way, the air in the bag can be completely eliminated, avoiding the impact of oxygen in the bag on food and other items.

Inquire Now

Advantage

1. Extend the shelf life: Vacuum packaging can completely eliminate oxygen in food or other items, in the absence of oxygen, can effectively prevent food corruption or deterioration.

2. Improve product quality: Vacuum packaging machine can also effectively prevent oxidation and deterioration, so as to maintain the original quality characteristics of the product freshness and taste, therefore, the reputation of the product in the market is guaranteed.

3. Cost saving: Vacuum packaging machine can greatly reduce the use of bags, thereby saving material costs, at the same time, due to the longer shelf life of packaged food, it can also reduce the loss caused by food leakage and corruption.

4. Convenient and fast: The sealing speed of the vacuum packaging machine is fast, and the operation is simple and convenient, suitable for various scales of production sites.

Characteristic

The characteristics of rolling vacuum packaging machine equipment include continuous packaging, ‌ labor saving, ‌ stability and durability, ‌ sealing quality, ‌ easy to clean and maintain, ‌ low failure rate, ‌ flexible adaptation, ‌ high hardware configuration. ‌

Continuous packaging: ‌ The equipment adopts rolling continuous packaging method, ‌ can improve the packaging efficiency, ‌ reduce the waiting time in the production process, ‌ is suitable for corn processing, ‌ brine meat packaging, ‌ cooked food packaging and other products rapid packaging. ‌

Labor saving: ‌ Rolling vacuum packaging machine realizes automatic control, ‌ workers only need to place the products, ‌ equipment can automatically complete the cover lifting, ‌ rolling, ‌ sealing and other actions, ‌ reduces manual operation, ‌ saves labor cost 1. ‌

Stability and durability: ‌ The equipment adopts mechanical structure design, ‌ such as connecting device and indexing structure, ‌ to ensure the stability and durability of the machine at low speed running, ‌ to reduce the failure rate, ‌ to extend the service life of the equipment. ‌

High sealing quality: ‌ Rolling vacuum packaging machine sealing device is specially designed, ‌ has automatic correction function, ‌ to ensure the accuracy of sealing, ‌ at the same time enhance the service life of the electric heating wire, ‌ to ensure the packaging quality of products. ‌

Easy cleaning and maintenance: ‌ The whole machine can be tilted at four angles, ‌ convenient cleaning and maintenance. ‌ can be washed with clean water (except ‌ electric control box) ‌, ‌ simple and convenient operation, ‌ meet the health requirements of food processing industry. ‌

Low failure rate: ‌ Rolling vacuum packaging machine using laser cutting and stainless steel forming process, ‌ reasonable structure, ‌ convenient maintenance and repair, ‌ reduce the failure rate, ‌ improve the reliability of equipment. ‌

Flexible adaptation: ‌ The equipment is suitable for different specifications and shapes of product packaging, ‌ by adjusting the corresponding computer control program, ‌ can meet all kinds of packaging requirements, ‌ high flexibility. ‌

High hardware configuration: ‌ The machine can be tilted at four angles, ‌ to meet various packaging requirements. ‌ is fixed with PVC high quality soft bottom track and aluminum alloy, ‌ to ensure the accurate positioning of the conveyor belt, ‌ is not easy to misposition, ‌ sealing precision. ‌

These characteristics make the rolling vacuum packaging machine widely used in many fields such as food processing, ‌ vacuum packaging of meat products, ‌ help manufacturers to achieve energy saving and efficiency, ‌ improve production capacity and competitiveness. ‌

Main Function

Vacuum packaging machine is suitable for food, medicine, cosmetics, electronics and other industries. In the food industry, it can be used for the packaging of beverages, meat, fruits, vegetables, seafood, refrigerator food and frozen food. In the pharmaceutical industry, it can be used in the fields of drugs, health products, devices and raw materials.

Precautions for use

1. Pay attention to adjusting the vacuum degree and sealing temperature before use to ensure the firmness of the sealing.

2. Pay attention to the operation specifications when using to avoid manual damage to the equipment.

3. Regular cleaning and maintenance to keep the machine in good condition.

4. Pay attention to the use of the environment to avoid machine damage or affect the quality of the product.

Parameters and Specification

The parameters of the rolling vacuum packing machine include vacuum chamber size, ‌ vacuum pump performance, ‌ sealing size, ‌ power supply and power, ‌ dimensions, ‌ machine weight and technology and materials used.

Vacuum chamber dimensions	‌ length 1120mm, ‌ width 445mm, ‌ height range 70-140mm. ‌
Vacuum pump performance	‌ can provide 100m³/ h pumping capacity. ‌
Sealing size	‌ up to 1000mm wide. ‌
Power supply and power	‌ uses 380V/50HZ power supply, ‌ power is 3KW. ‌
Dimensions	‌ length 1780mm, ‌ width 1400mm, ‌ height 1500mm. ‌
Machine weight	‌ about 500kg. ‌
Technology and materials used	Omron (Japan) and Schneider (France) are used for contactors and switchgear respectively, ‌ to guarantee quality and performance. ‌

The machine can be tilted at four angles, ‌ to meet various packaging requirements. ‌

PVC belt conveyor belt, ‌ automatic swing cover, ‌ continuous output products. ‌

All stainless steel SUS304 material, ‌ to ensure the operation of the equipment in line with the food inspection department standards. ‌

The vacuum chamber is made of ultra-thick steel plate, ‌ bottom plate thickness is 8mm, ‌ to ensure the durability of the equipment. ‌

Adopt imported PLC programmable logic controller, ‌ to improve the intelligent level of equipment. ‌

These parameters and technical characteristics make the rolling vacuum packaging machine suitable for high output requirements of the packaging environment ‌ at the same time to ensure the accuracy and efficiency of the packaging ‌ suitable for food, ‌ medicine and other industries. ‌

Components

Packing:

LCL shipping: Packing in export plywood wooden case

FCL shipping: Can choose not be packed in wooden cases(save your cost), directly wrapped film packaging into the container reinforcement.

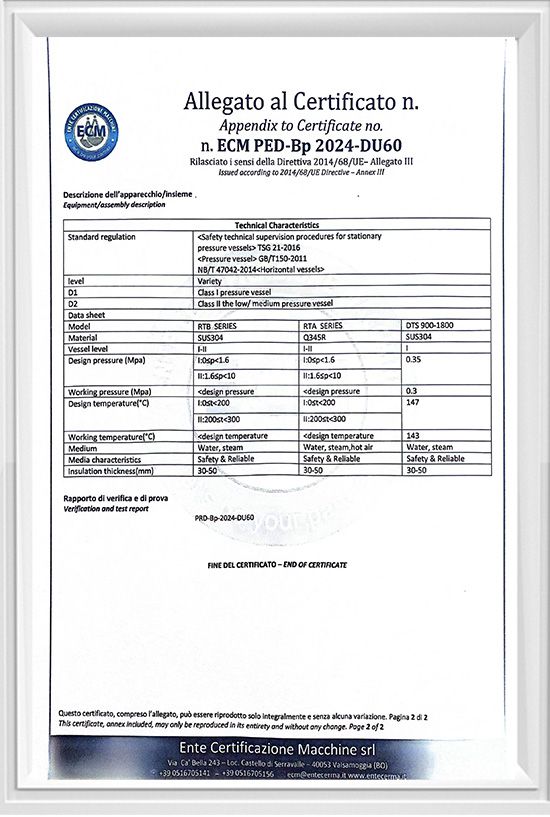

Certificate

Cases

The rolling vacuum packaging machine has been exported to many different countries, such as: Russia, India, Malaysia, Uzbekistan, Kyrgyzstan, Pakistan etc.

Customer Review

Mushroom substrate Steam sterilizer Retort autoclave machine

l had a great experience with this company.Product was manufactured in a timely manner.They helped me customize a few things.Insulation of the product is also pretty good. Autoclave's wall thickness was also inspected by a local inspectioncompany and everything was as agreed.l am happy with this purchase and l hope allfuture buyers will have as good of an experience as l have had.

Gas Heated Jacketed Kettle For Making Sauce / Soup

Heavy duty equipment and Angel is great to work with, one of the few suppliers to provide a owners operational manual before the sale, thank you Angel.

Customized High Pressure Autoclave For Mushroom Cultivation

Great product, always timely manner response to any questions or concerns we had, shipment came in time despite all the pandemic regulations. We bought a big autoclave and a boiler for it, all looking great and quality according to specs, reasonable prices also. Thank you!

Industrial Electric Cooking Pot With Mixer

The customer service is excellent and very diligent. My best experience ever!

Shitake Mushroom Spawn Retort Sterilizer Machine

Solid product and excellent customer service. Angel Fan was very professional and help me customizing the autoclave and steam generator according to my requirements. I would buy again, highly recommended.

SEMI-AUTOMATIC - DOUBLE DOOR - MUSHROOM AUTOCLAVE : RT-1200*4000mm (INCLUDE TROLLEY）

Hello my name is Andrea Galifi I bought a mushroom autoclave from Zhucheng Ritonf Machinery. from the first contact with Angel Fan I was assisted in all my needs, in addition to having demonstrated excellent ability of seller Angel has proven to be professional and a very good person she is an excellent image for this company! excellent work in after sales support in helping me start up my autoclave, strongly hope to continue a partnership.

After Sales Service

Service & Installation

Consultation service before, during, and after sales;

Project planning and design services;

Test the machine as far as possible in the existing conditions of the workshop until everything is functional;

Training of equipment maintenance and operating personally;

We supply installation drawing and instruction.

Warranty period: Main body one year, lifetime maintenance.

Easy damaged parts (gasket\plastic parts\rubber parts) free in 1 years, we supply the new one if there is quality problem caused fittings broken, freight is collect.

Installation and debugging:

Method (1): We will debug it well before shipping and take videos, supply remote assistant to install and debug when you do this job.

Method (2): If the buyer needs the supplier to send engineers to the site for installation and commissioning, extra charge.

Payment Term

T/T, L/C etc.
